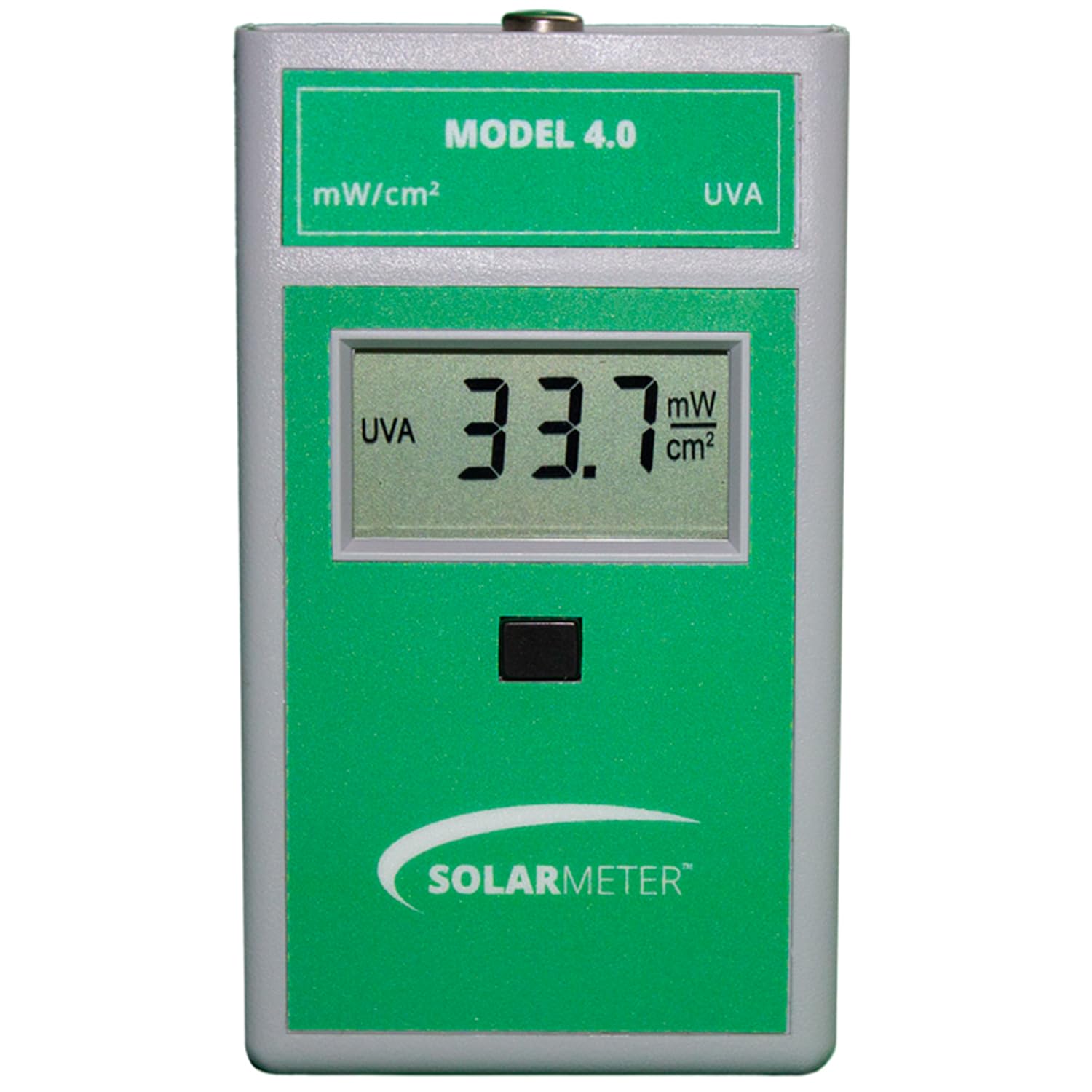

Solarmeter Model 4.0 UVA Meter

Handheld UV-A radiometer 320-400 nm, NIST-traceable, ±10%

Solarmeter (Solar Light Company, LLC) · US ● Manufacturer-confirmed
NIST-traceable

Key capabilities

  • NIST-traceable
  • Handheld / spot

At a glance

Instrument type
radiometer
Wavelength range
320–400 nm
NIST traceable
Yes

About this product

A handheld meter that measures UVA light intensity (320-400 nm) up to 199.9 mW/cm2, used to check the output of UV lamps as they age and to test how much UVA passes through acrylic shields or window film. The reading shows in real time on an LCD, so you can verify a lamp still delivers the UVA level a process needs. NIST-traceable calibration means the readings are tied to a national measurement standard, making results comparable and repeatable; rated accuracy is approximately +/-10%.

Specifications

Irradiance range
0.00–199.90 mW/cm²
Detector type
Silicon photodiode + UVA bandpass filter
Manufacturer Part No.
4.0
Datasheet (PDF) ↗

Specifications were provided by Solarmeter (Solar Light Company, LLC) and have not been independently verified by LUVEX. Verified listings carry a Verified badge after our datasheet review.

Calibration & re-calibration services

Every measurement instrument needs periodic re-calibration to maintain accuracy. These accredited service providers offer cal-services for this category.

No accredited calibration-service providers listed yet — be the first to submit.

Submit a service listing →

Compare with similar items

Comparable instruments — measured band, deployment and calibration side by side.

SpecThis item Solarmeter Model 4.0 UVA Meter Solarmeter Model 4.0 UVA Meter Solarmeter (Solar Light Company, LLC) $249 29% specced You are here CureUV UVA Irradiation Meter CureUV UVA Irradiation Meter CureUV €500 53% specced View → EIT UViCure Plus II UV Radiometer (curing dose puck) EIT UViCure Plus II UV Radiometer (curing dose puck) EIT Instrument Markets $1,899 29% specced View → Loctite 7020 UV Spot Radiometer (Wand) Loctite 7020 UV Spot Radiometer (Wand) Henkel AG (Loctite) €3,701 59% specced View →
Measured band320–400 nm320–400 nm320–390 nm320–390 nm
Typeradiometerradiometerradiometerradiometer
Deployment formHandheld / spotHandheld / spotPass-through puck (conveyor/tunnel)Handheld / spot
Pass-through capableNoNo
Irradiance range0–199.9 mW/cm²0–65 mW/cm²1–10000 mW/cm²0–20000 mW/cm²

Specifications as listed by each manufacturer or public source — LUVEX does not rank products. A blank cell means that figure has not been provided yet. Verified listings and active partners are shown first; the table itself stays neutral.
